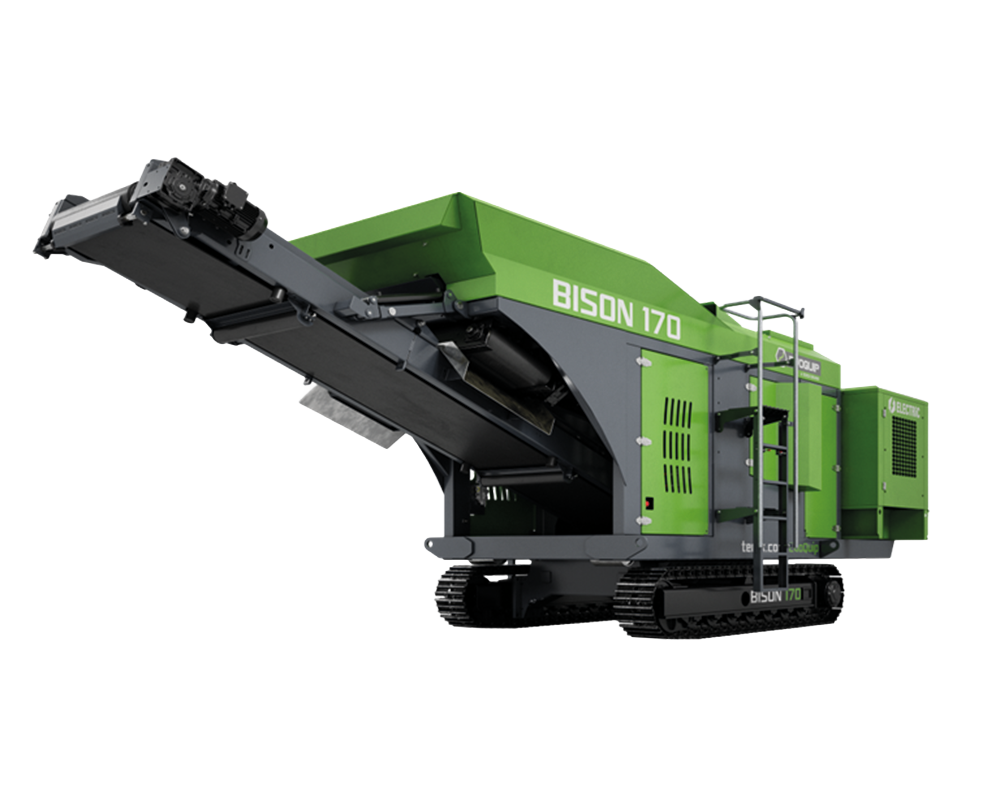

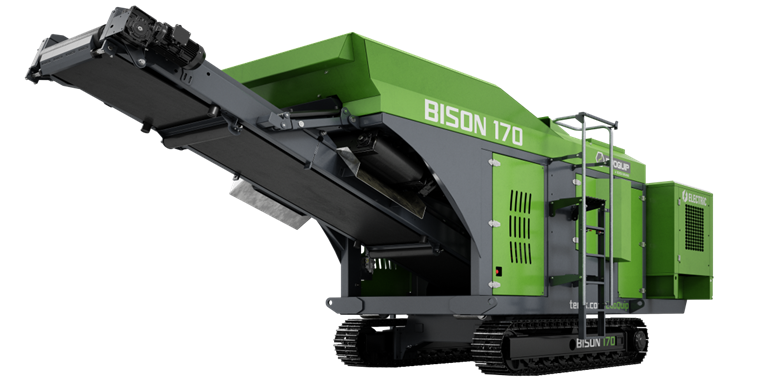

The Bison 170 Crusher is a high-performing crusher designed for operators who need a compact, environmentally friendly machine capable of delivering reliable production in a variety of applications. The EvoQuip Bison 170 combines diesel-electric drive technology with excellent maneuverability, making it well suited for working in urban areas and on sites where emission reduction is a priority. Built around a durable 700x500mm jaw chamber, the Bison 170 Crusher delivers an output of up to 110tph while maintaining low fuel consumption.

As part of the EvoQuip jaw crusher range, the Bison 170 is a high-performing machine engineered to crush material efficiently in natural rock and recycling applications. The electric drive system can operate using the onboard generator or an external power source, supporting zero emissions processing when required. A deflector plate and the ability to run in reverse for asphalt recycling help operators clear a blockage quickly and maintain productivity. With excellent ease of use, advanced control system functionality, and simple transport from site to site, the Bison 170 aligns with the EvoQuip Think Green approach while delivering strong performance and versatility.

Specification

Working Length 26 ft 11 in

Working Width 8 ft 5 in

Working Height 10 ft 5 in

Weight 37,478 lbs
