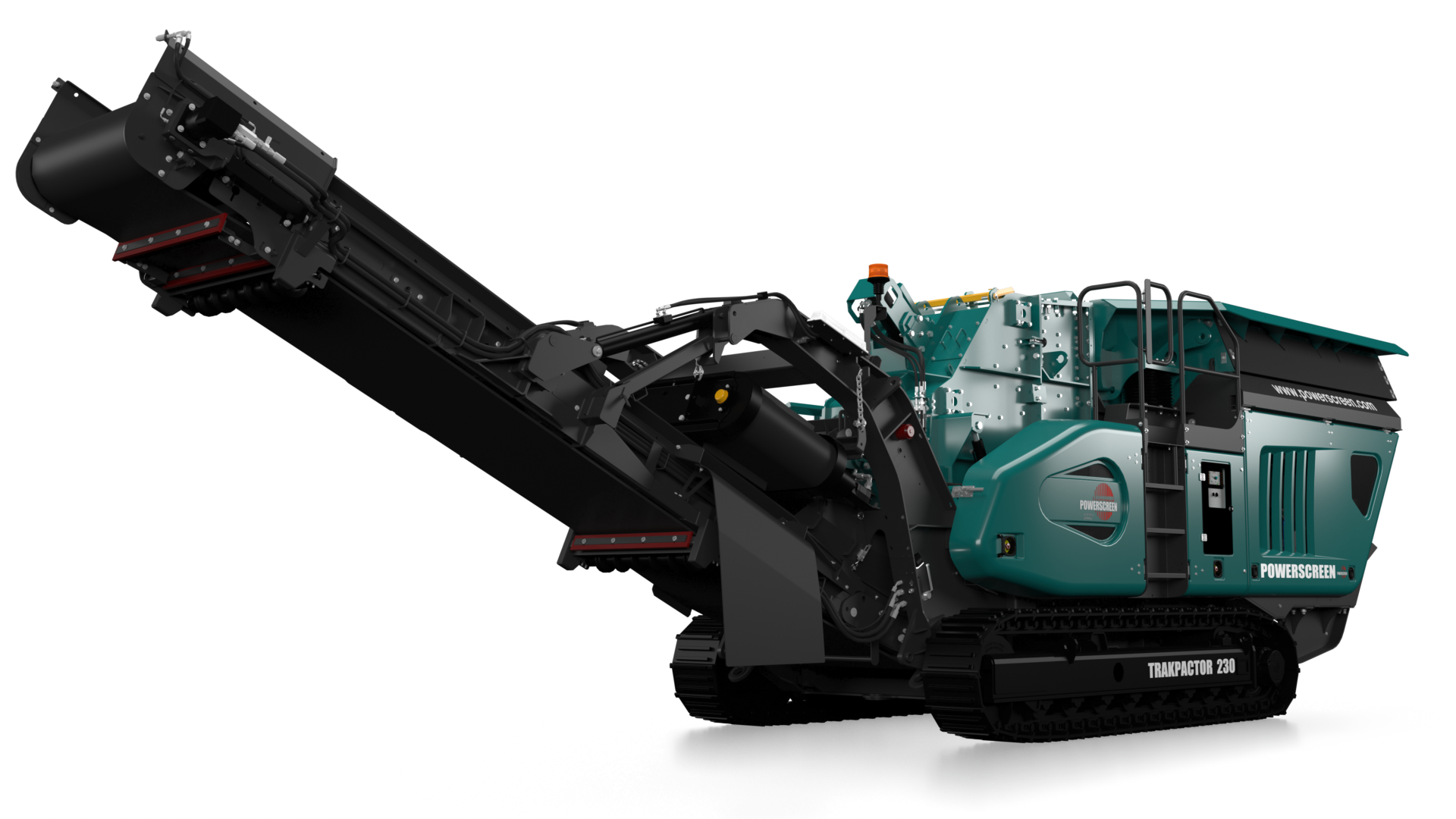

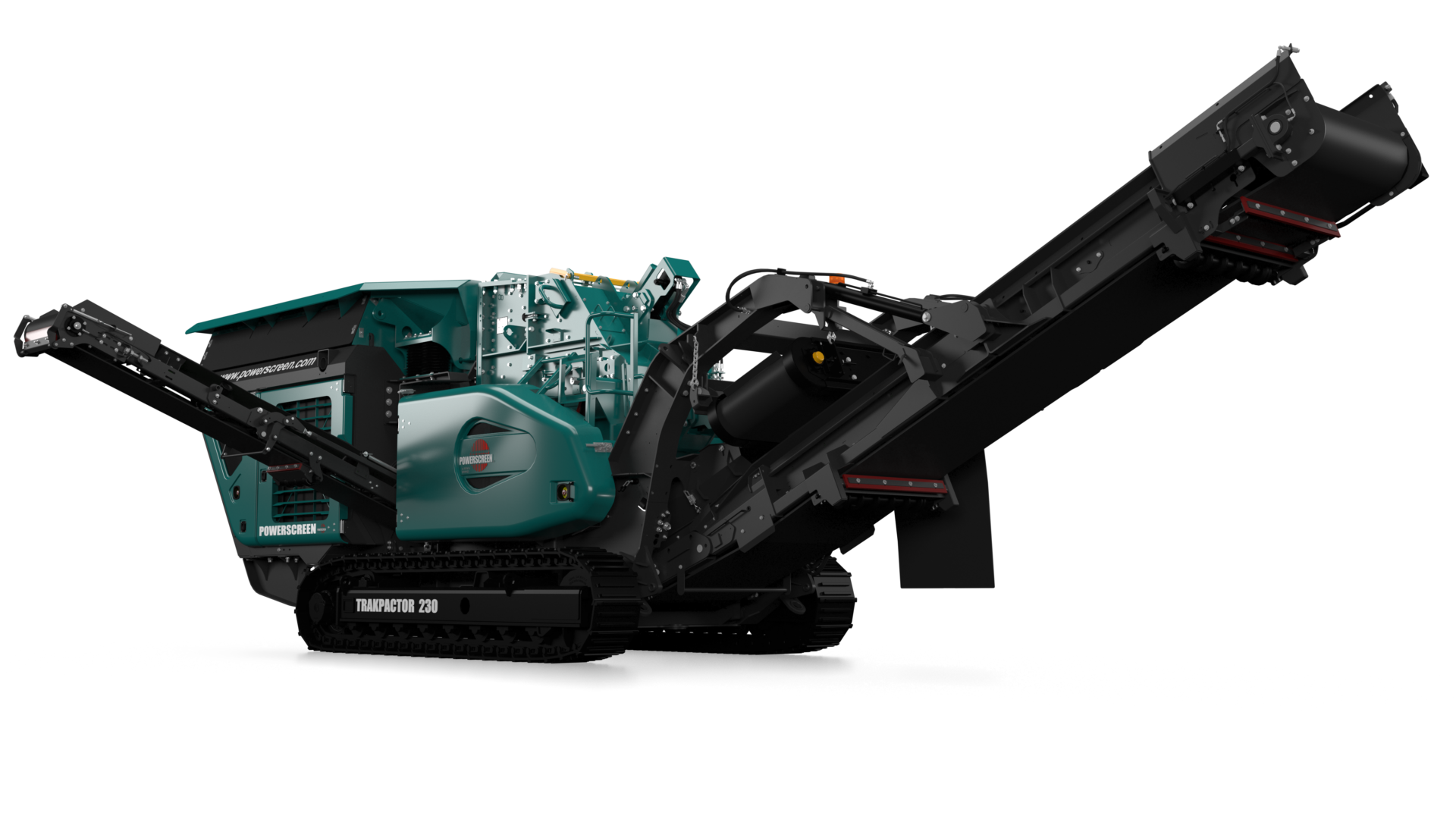

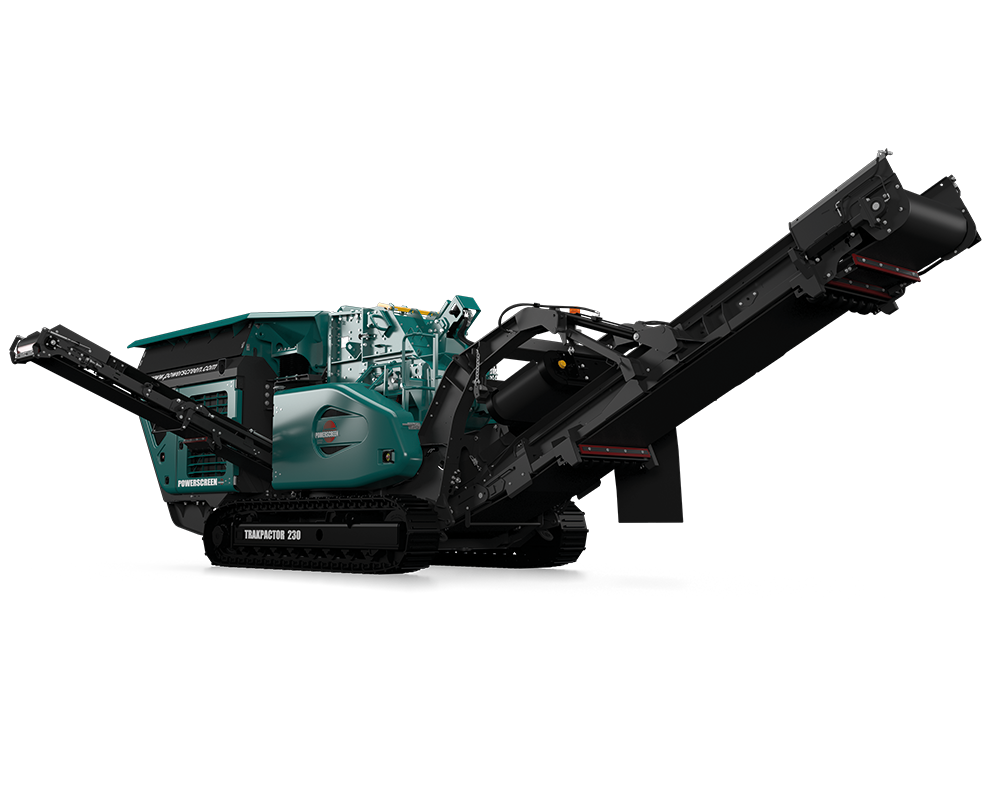

The Powerscreen Trakpactor 230 Impact Crusher is a compact, high-performance impact crusher built to deliver reliable crushing results across a variety of applications. Designed to offer both excellent reduction and high consistency, this machine is primarily suited to recycling operations but is equally effective in construction, demolition, and mining environments. The Trakpactor 230 combines powerful performance with a compact design and ease of mobility, making it an ideal solution for contractors who require a highly productive mobile crusher that can be transported efficiently between job sites.

Featuring a robust horizontal shaft impact system, the Trakpactor 230 is engineered to crush material efficiently while maintaining a high consistency of product yield. The machine’s large hopper and heavy-duty track design support continuous processing and dependable output. Operators benefit from enhanced fuel efficiency, straightforward serviceability, and a design focused on maximizing uptime.

For applications requiring additional sizing capabilities, the quick-detach SR section found on the Trakpactor 230SR allows material to be passed back to the crusher for further sizing. This flexibility highlights the versatility of the Powerscreen Trakpactor range. Whether processing recycled material or working in demanding aggregate applications, the Trakpactor 230 impact crusher delivers excellent reduction, dependable output, and the efficiency modern operations require.

Specification

Output Potential 250 tph* (275 US tph)

Transport Dimensions Width: 2.5m (8’3″) Length: 9.3m (30’7″) Height: 3m (9’10”)

Working Dimensions Width: 5.13m (16’10”) Length: 11.37m (37’3″)Height: 3.26m (10’8″)

Weight 24,450kg (53,903lbs)
