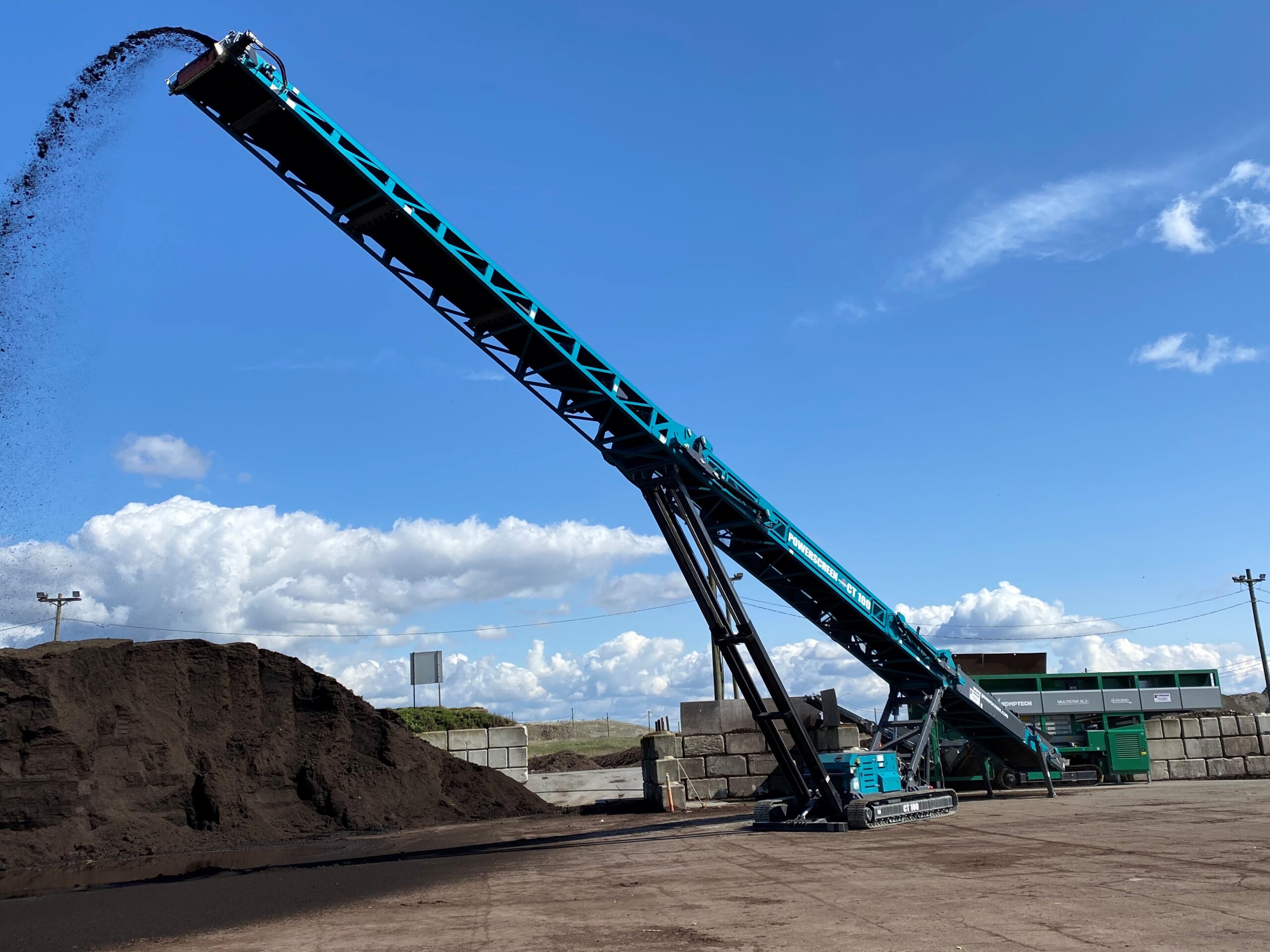

The Powerscreen CT100 100ft stacker, builds on the hugely successful Powerscreen CT65 & CT80 conveyors with extra length and capacity. The extra length of conveyor, and increased power, allows for maximum mobility and flexibility, reducing or eliminating the use of wheeled loaders on site. The conveyor can cope with all applications, from light duty screened material, through to jaw applications. Although the conveyor is 100ft long, it still retains the ability to be transported worldwide in a 40ft container meaning convenience and keeping shipping costs low. The Powerscreen® range of mobile conveyors are designed to work in conjunction with the entire range of Powerscreen crushing and screening equipment. Using conveyors or stackers means increased stockpile capacity and reduces on-site material handling.

Specification

Output Potential Up to 600tph (661 US tph)

Transport Dimensions Width: 2.8m Length: 11.9m Height: 3.43m

Belt Width 1050mm

Conveyor Length 30m

Max Discharge Height 13.1m at 25°
