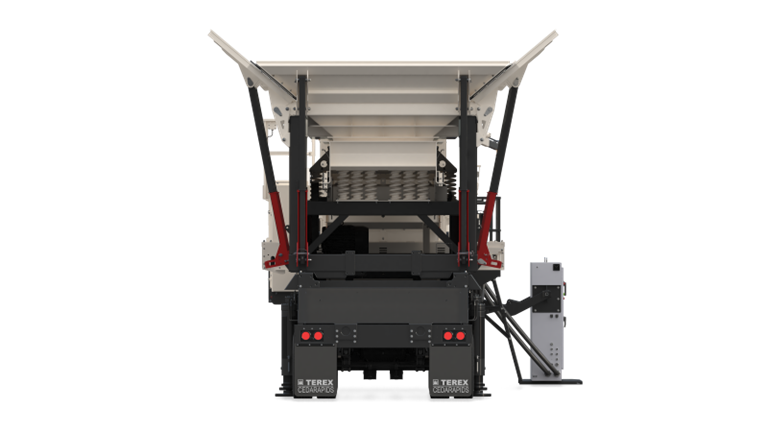

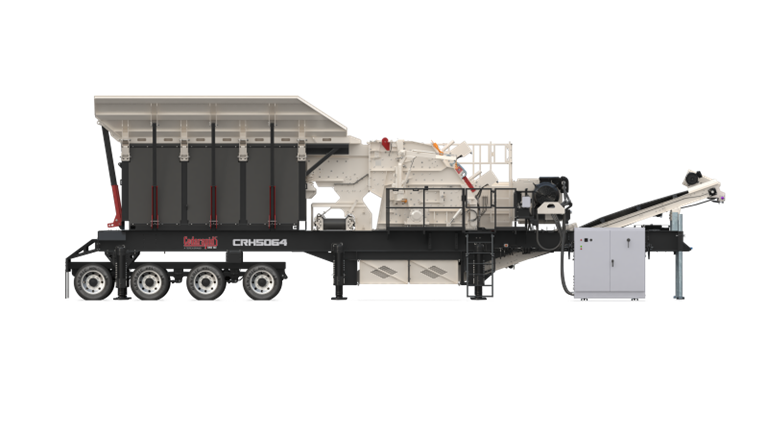

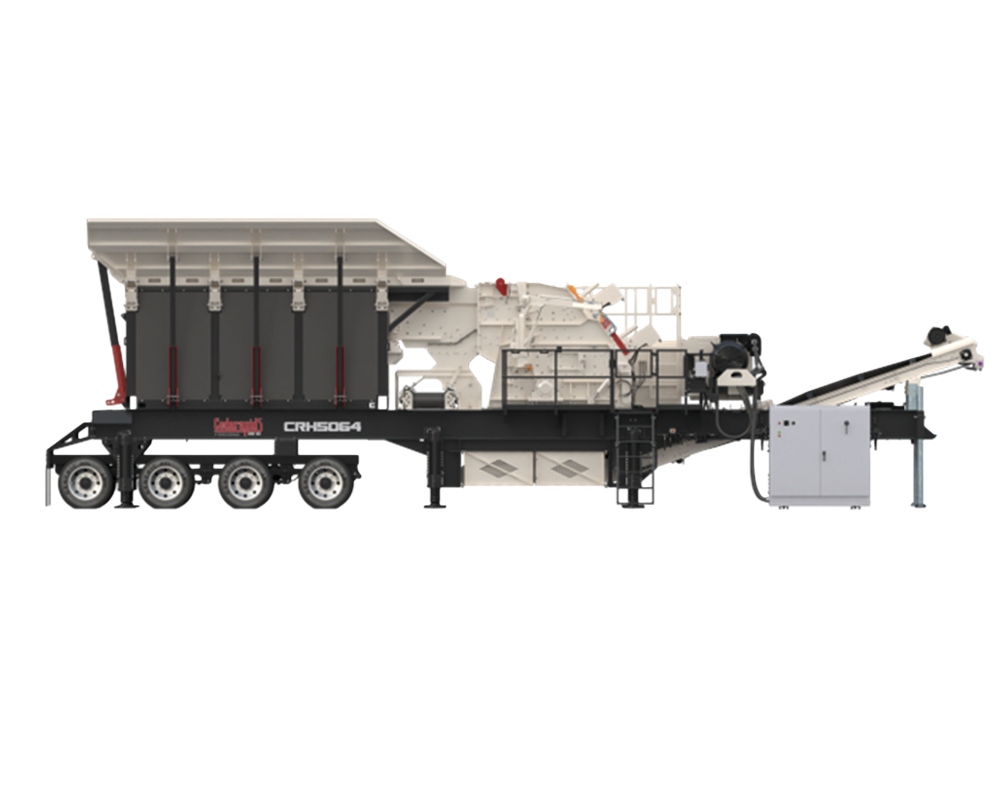

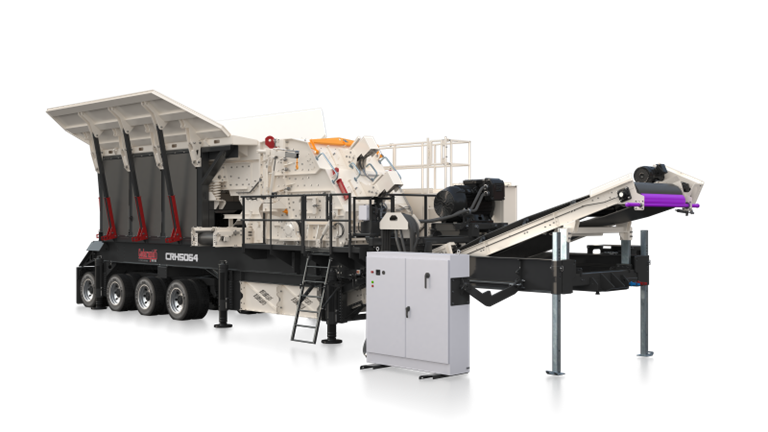

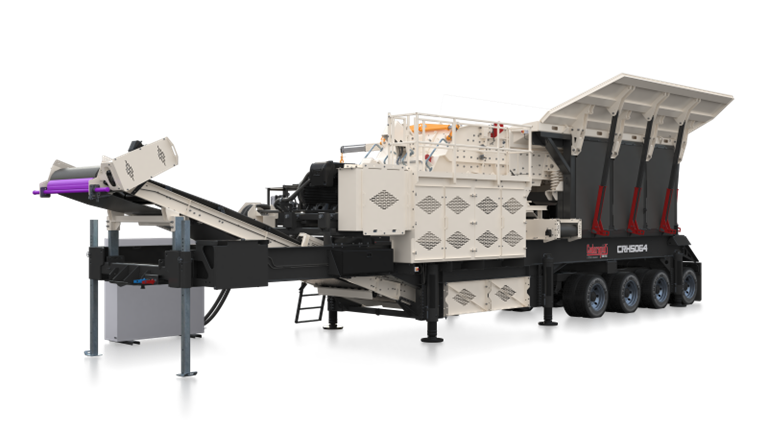

The Cedarapids CRH5064 from Powerscreen of Washington is a high-capacity portable impact solution engineered for demanding aggregate operations. Designed around the proven TI5064 impact crusher, the CRH5064 delivers exceptional performance for primary crushing and large-scale aggregate production. This portable HSI impactor plant combines reliable mobility with outstanding throughput, making it an excellent choice for contractors seeking efficient portable crushing in a wide variety of crushing applications.

At the heart of the Cedarapids CRH5064 is the TI5064 Horizontal Shaft Impactor, featuring a high-inertia four-bar rotor, hydraulic tramp iron relief, and a durable monoblock primary curtain with replaceable tips. The TI5064 HSI is designed to efficiently crush minus shot rock limestone, recycled concrete, and other aggregate materials while maintaining excellent product consistency. With a powerful 400 HP drive, the impactor delivers the performance required for high-production crushing plant operations.

The CRH5064 Portable HSI Impactor Plant also incorporates the Cedarapids Advantage Series Feeder, complete with a heavy-duty grizzly, large hopper, and rugged pan feeder for consistent material flow. Convenient hydraulic assist apron adjustment, quick apron adjustments, and integrated overload protection simplify operation and maintenance. A built-in jib crane, removable hopper module, and feeder lift improve serviceability while reducing downtime.

Developed through extensive prototype testing, the CRH5064 HSI Portable Plant is engineered to handle demanding feed size requirements while maximizing throughput and producing high-quality fine aggregate. Whether paired with crushing and screening equipment or operating as a standalone unit, the Cedarapids Portable CRH5064 provides the productivity, reliability, and flexibility today’s aggregate producers expect. Backed by Powerscreen of Washington, this HSI crusher is built to excel in modern quarry and construction operations.

SPECIFICATIONS

Weight 112,300 lbs
Transport Dimensions (LxWxH) 56 feet 4 inches long, 11 feet 11 inches wide, and 13 feet 10 inches high
Axles 4 Axle
