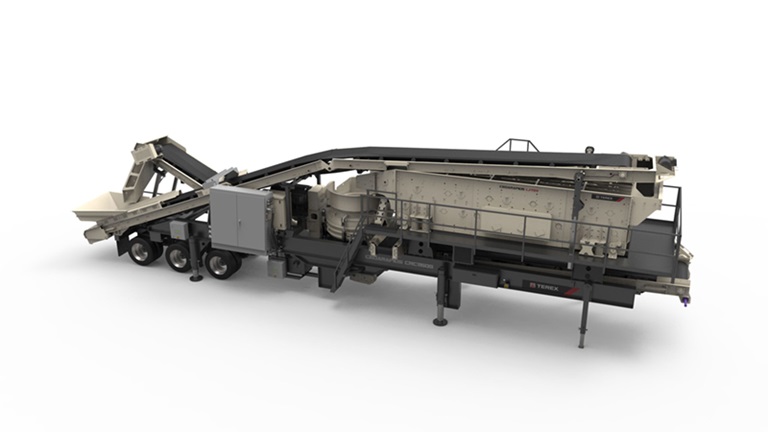

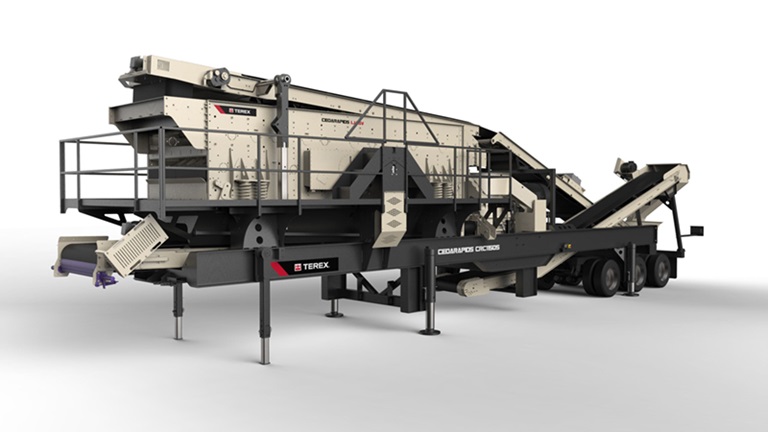

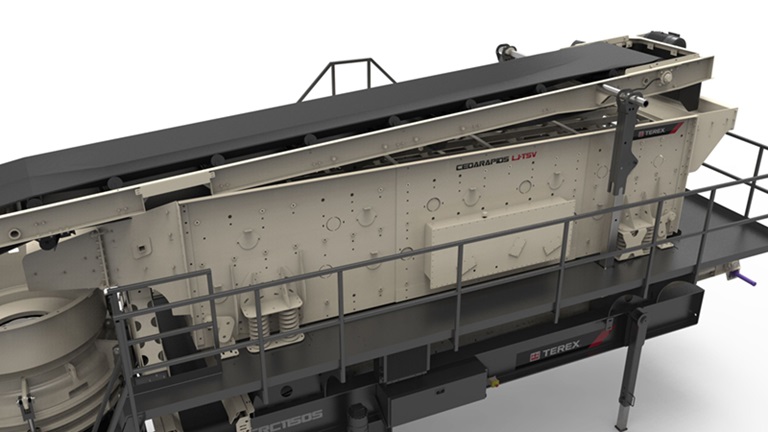

The Cedarapids CRC1150S Portable Cone and Screen Plant delivers big capacity features in an economical highly portable plant. The cone and screen plant features the TC1150 Cone Crusher and the TSV Horizontal Screen.  The plant is designed for high efficiency, combining powerful crushing capabilities with enhanced screening performance.   The CRC1150S provides flexibility for aggregate operations, making it suitable for various project scales.

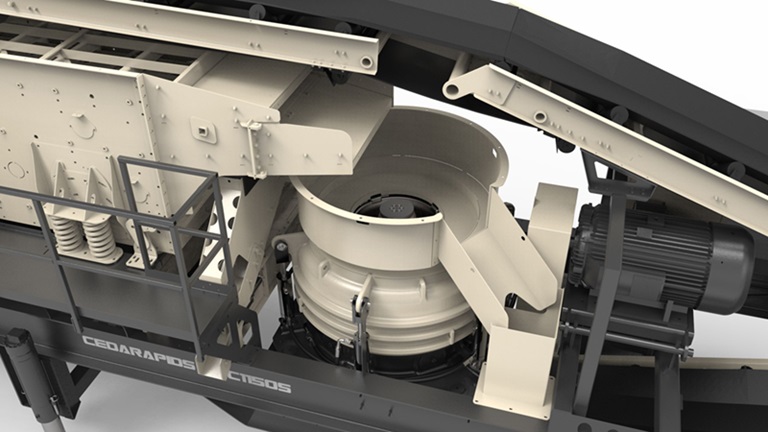

The TC1150 Cone Crusher utilizes a 300 HP motor with high-efficiency roller bearings and boasts several notable advancements that enhance performance and functionality.  Key features include automated cone controls, larger closed-side settings, and rubber isolation mounting on a heavy-duty chassis frame.

SPECIFICATIONS

Weight 110,800 lbs
Working Dimensions (LxWxH) 61’3″ x 11’11” x 16’7″

Axles 3 Axle
Capacity 165-320 tph
