2017 POWERSCREEN 1000SR

2017 POWERSCREEN 1000SR

$550,000 (USD)

Washington

orCall 253-236-4153

Description

Cone crushers are highly effective at using compression to crush material into a consistent product. For this reason, cone crushers are the most commonly used crushing plant for secondary and tertiary crushing stages in both the aggregate and recycling industries. When used correctly, cones will have a far lower operating cost than an impactor and produce less fines. The Powerscreen range of mobile cone crushers excel in a variety of applications from hard and abrasive rock to softer and more friable rock. The range uses advanced Automax® crusher technology to provide high volumes of excellently shaped product.

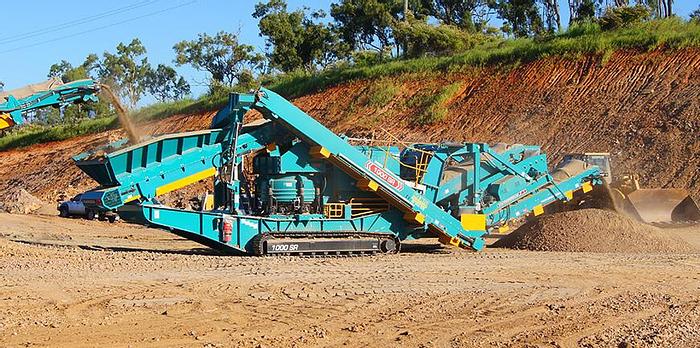

The Powerscreen® 1000SR mobile cone crusher is built around the successful 1000 Maxtrak model and features a re-circulating conveyor and a double-deck post-screen to provide a complete crushing and screening process on a single chassis. The machine is designed for direct feed applications without pre-screening on clean rock. Suitable for secondary and tertiary applications, the 1000SR can produce up to three products when oversized material doesn’t require re-circulation to the crusher.


Options

  • Concaves: extra coarse, medium coarse, coarse, Autosand®
  • Short throw eccentric
  • Feed hopper extension plates
  • Product conveyor belt weigher
  • Electric refuelling pump
  • Hydraulic water pump
  • Radio remote control
  • Additional stockpiling conveyor for mid-grade product


Features and Benefits


  • Output Potential: up to 230 tph (253 US tph)
  • Renowned Automax® crusher technology
  • Accepts clean all in feed
  • Excellent product shape
  • High reduction ratio
  • Cone feed box level control to maintain choke feeding
  • Hydraulic crusher setting
  • Cone overload protection
  • Heavy duty chassis and track frame
  • Metal detector
  • Dust suppression system
  • Economical to operate with a highly fuel efficient direct drive system
  • Patented double deck post screen.
  • Suitable for re-circulating oversized material

Specifications

ManufacturerPOWERSCREEN
Model1000SR
Year2017
ConditionUsed
Serial NumberPID100SRAOMI46783
Stock Number1000SR-1
Output Potential230tph (253 US tph)* / 230tph (253 US tph)*
Transport DimensionsWidth: 10'2" Length: 55’ 5” Height: 11'4" / Width: 3.1m Length: 16.9m Height: 3.45m
Working DimensionsWidth: 11'3" Length: 55’ 5” Height: 15’ 11” / Width: 3.43m Length: 16.9m Height: 4.85m
WeightTier 3: 87,391lbs Tier 4: 89,949lbs / Tier 3: 39,640kgs Tier 4: 40,800kg
CSS RangeMin: 0.7" Max: 1.6" / Min: 18mm Max: 38mm
